Tuesday, 4 November 2014

1/16 R/C M3 Lee/Grant (Build)

After finishing my M7 Priest I've decided to have a go at the M3 Lee/Grant to go on the Heng Long M4 Sherman lower hull.

I started with a Tamiya 1/35 Lee and a copy of George Bradford's WWII AFV Plans (British AFv's) which has plans for the Grant.

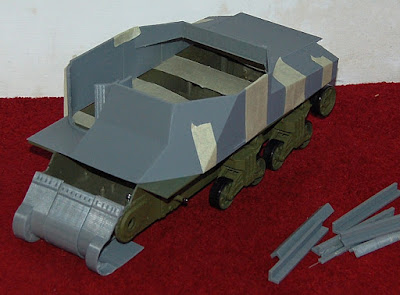

So to start I made thin card mockup of the 1/35 model to check sizes and angles.





Then draw it out in Openscad -



The hull is printed in three parts-

I had already done the back section as part of my Priest and the three piece transmission covers just need a small modification.

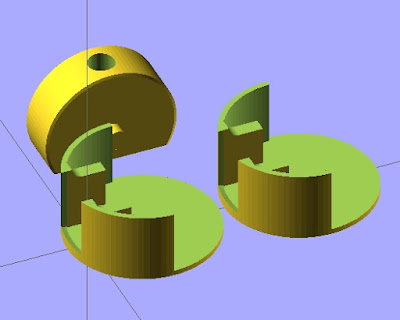

Then for the sponson-




I'm thinking of having a airsoft gun in the 75mm gun and IR in the top turret. That's if I can figure out how to get it all to fit.


Now for the hull top. This will be printed in four parts-

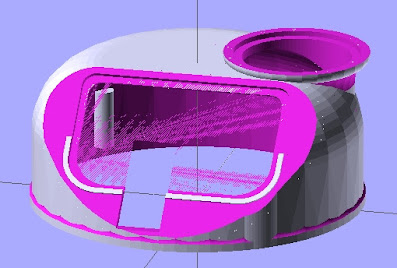

And the turret

hot off the printer

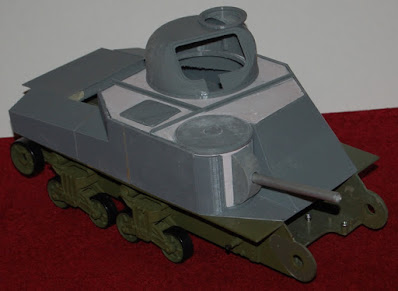

So far-


Got some more done-

HL bogie


a bit of chopping


add some bits


voila


It's just tacked together with superglue so I can check it out (and change bits). The wheel on the left is waiting for a rubber tyre and the one on the right has a printed tyre.

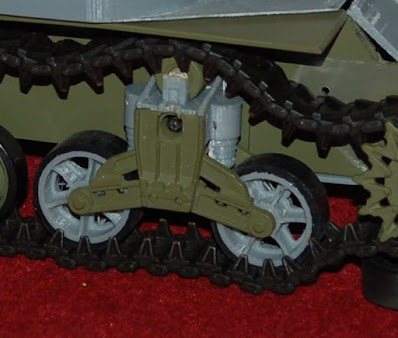

Early bogie (MkII) with rubber tyres.
Had a bit of trouble with the fake springs getting in the way of the wheels when they move up so after a bit of a redesign (and a paper clip) the springs now move out of the way (though not up and down). It's not perfect but without a major modification of the HL bogie springs it'll have to do.

The wheels are a bit wider then the HL as the HL wheels are too narrow for the tracks.


Now my Firefly is out of the way I can get on with this-
Bogies almost finished and hatches added-



Decided to redo part of the hull roof with supports and added the hinged engine deck.-




Got round to doing some more-




I've been dragging my feet as I'm not looking forward to doing the rivets :(
and I keep getting distracted-



Tracks and fenders-



Rivets and guns added (still got the back of the fighting compartment to do)-

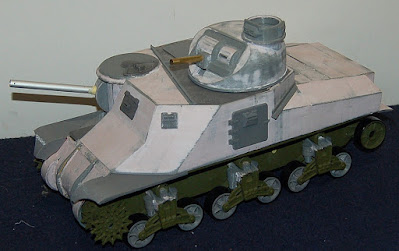

Ready for priming-




Ready for weathering-

Photos of the finished tank are here

 Now for the Grant

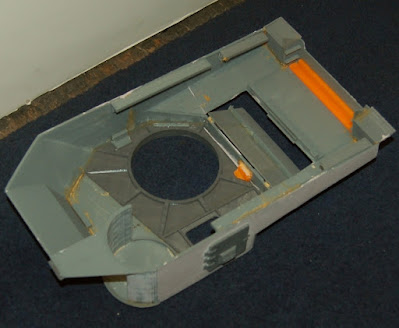

Bigger printer means I can print the hull in one piece-
